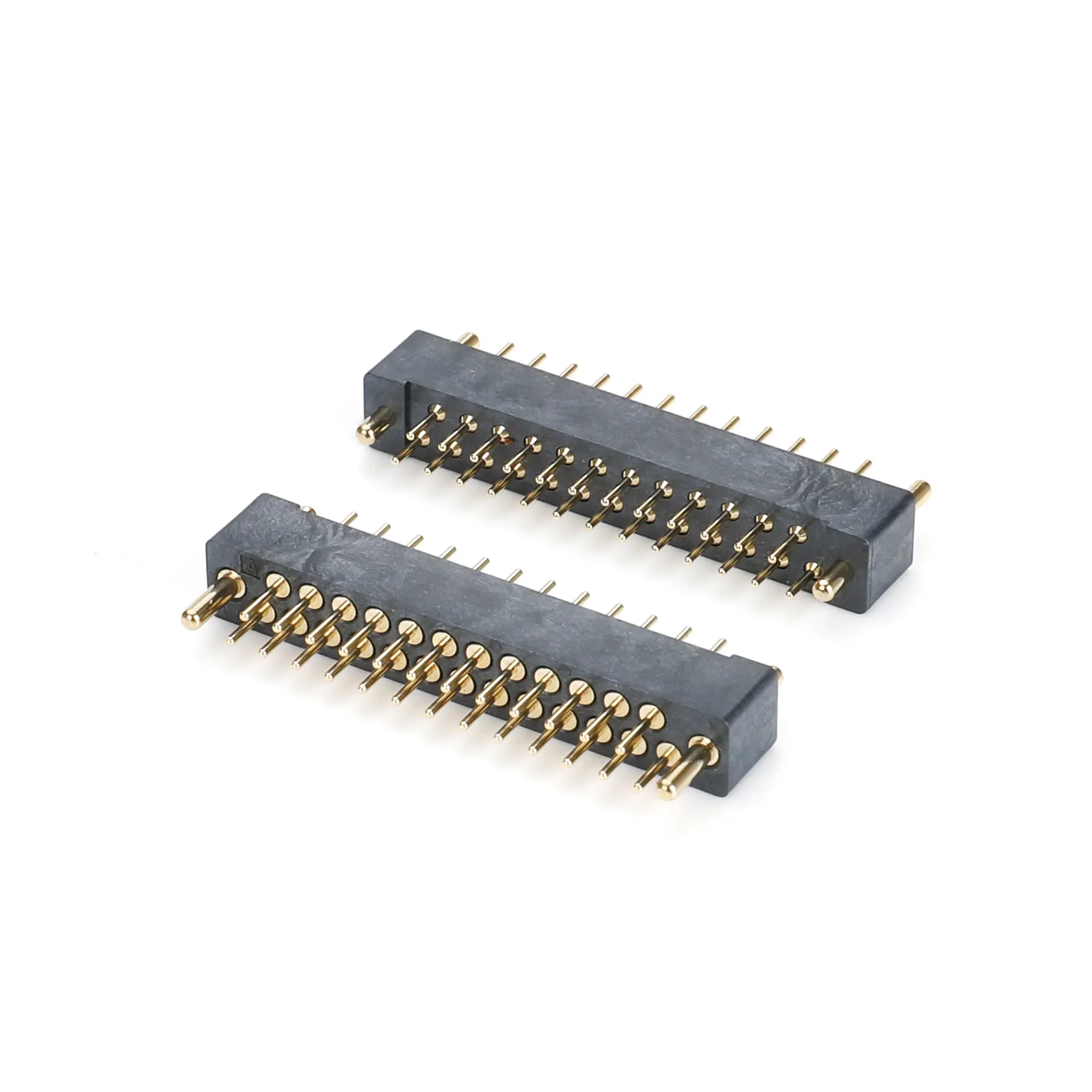

2.54mm Round Pin Header/Double/H: 6.5mm(HP254DB-25-0650)

2.54mm Pitch Round Pin Header, 2.54mm round pin header, Dual Row Round Pin Header

    Contact us
    Product Detail

    2.54 Round Pin Header

    Current Rating: 3.0A
    Voltage Rating: AC 125V
    Contact Resistance: 20mΩ Max. Initial
    Operation Temperature: ﹣40℃~ +105℃
    Insulation Resistance: 1000MΩ
    Withstanding Voltage: 500V AC/60S
    Contact Material: Copper Alloy
    Housing Material: Thermoplastic. UL 94V-0

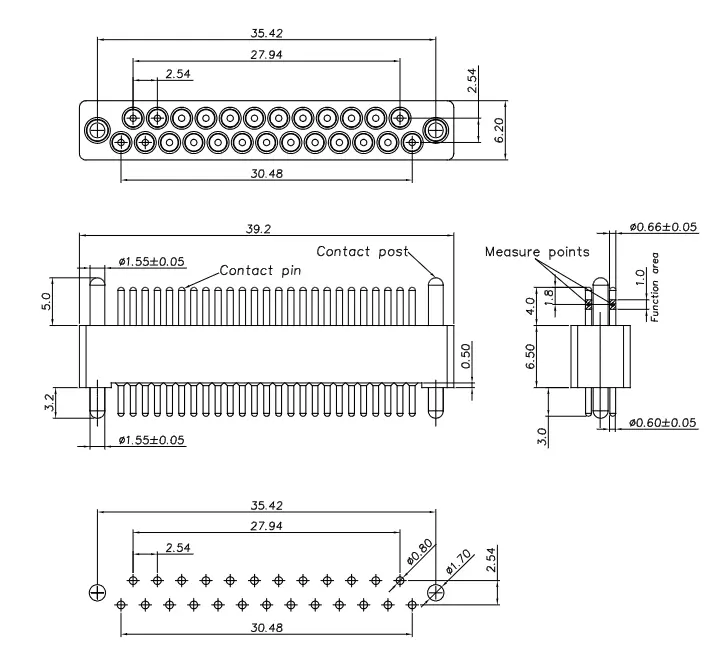

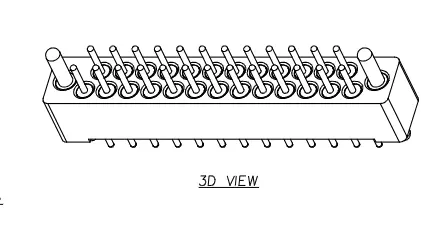

    Drawing:

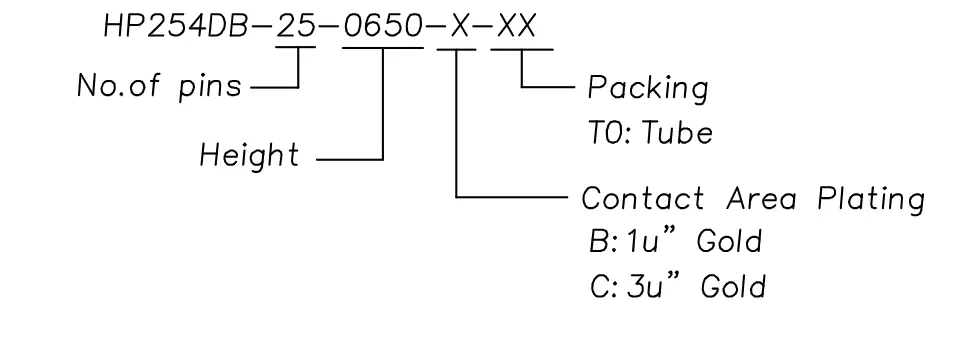

    Product Number Matrix:
