01
2.0mm SMD Single Row Female Socket

2.0mm SMD Single Row Female Socket (HS200SA-0430)

2.0mm Pitch Socket/Single Row/SMD/SMT/H: 4.3mm

This innovative socket is designed to provide a secure and efficient connection for SMD (Surface Mount Device) applications, offering a range of features and benefits that make it an ideal choice for various electronic projects

    Contact us
    product details

    Feature


    The 2.0mm SMD single row socket is characterized by its precision engineering and high-quality materials, ensuring a durable and long-lasting performance. With a compact 2.0mm pitch, this socket is suitable for use in tight spaces and applications where space is limited, making it a versatile option for a wide range of electronic devices and circuit boards.

    Specifications

    Current Rating

     1A AC/DC

    Voltage Rating

     30V AC/DC

    Contact Resistance

     20mΩMax.

    Operating Temperature

     -40℃~+105℃

    Insulation Resistance

     1000MΩ

    Withstanding Voltage

     500V AC/60S

    Max Processing Temperature

     260℃ for 10 Seconds

    Contact Material

     Copper Alloy, Plating Au/ Sn or others

    Housing Material

     Thermoplastic or High Temperature Thermoplastic, UL 94V-0

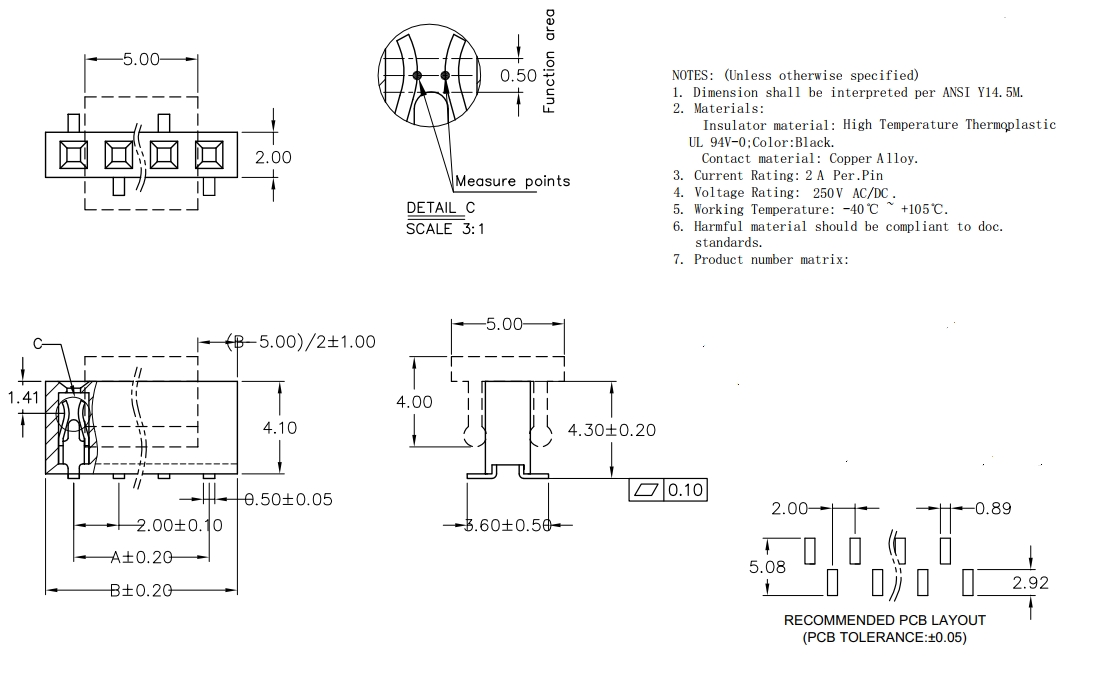

    Dimension Drawings

    2.0mm Pitch Socket/Single Row/SMD/SMT/H: 4.3mm

    Advantages

    One of the key advantages of the 2.0mm SMD single row socket is its ease of use and installation. The socket is designed for simple and straightforward assembly, allowing for quick and efficient integration into your electronic designs. Its single row configuration also makes it easy to align and solder, saving time and effort during the assembly process.

    Applications

    This socket is suitable for a variety of applications, including consumer electronics, telecommunications, automotive systems, and industrial equipment. Its reliable performance and secure connection make it an excellent choice for applications where stability and durability are essential.

    In addition, the 2.0mm SMD single row socket is available in a range of configurations, including different pin counts and mounting options, allowing for flexibility in design and compatibility with various electronic components. This versatility makes it a valuable component for engineers and designers seeking a reliable and adaptable solution for their projects.
