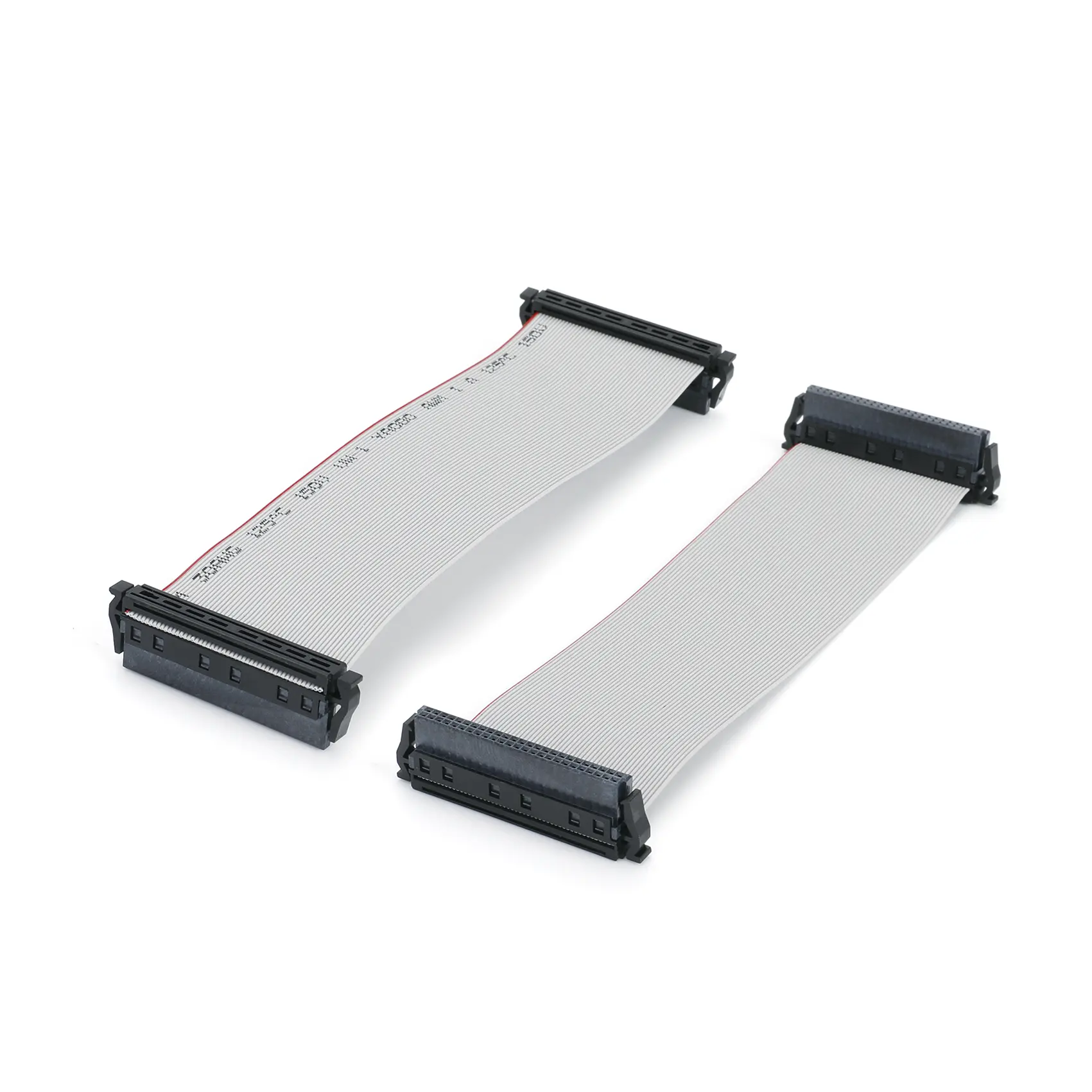

SMC 组合.jpg

1.27mm Pitch IDC Cable

1.27mm pitch IDC Cable, 1.27mm pitch cable

    Contact us
    Product Detail

    1.27mm Pitch IDC Cable

    Current Rating: 1.7A
    Voltage Rating: AC 125V
    Contact Resistance: 25mΩ Max. Initial
    Operation Temperature: ﹣55℃~ +125℃
    Insulation Resistance: 1000MΩ
    Withstanding Voltage: 500V AC/60S
    Contact Material: Copper Alloy
    Housing Material: Thermoplastic. UL 94V-0

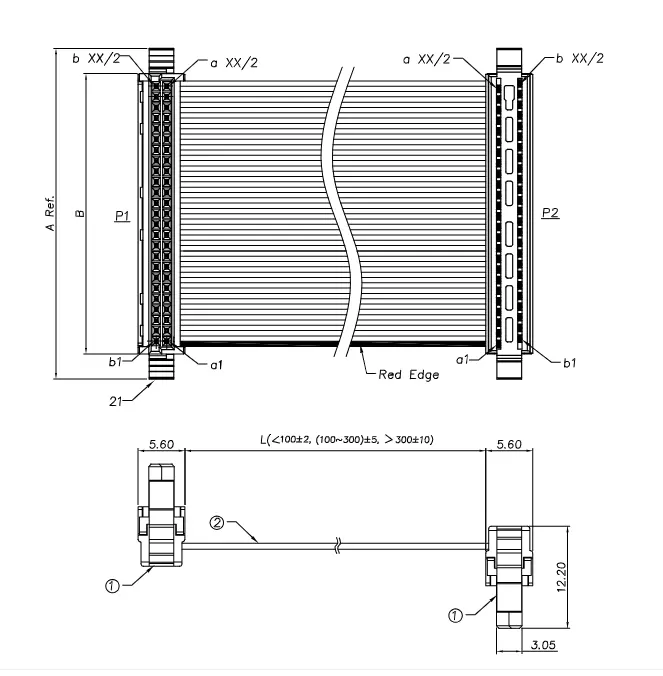

    Drawing:

    SMC cable线 图纸.png

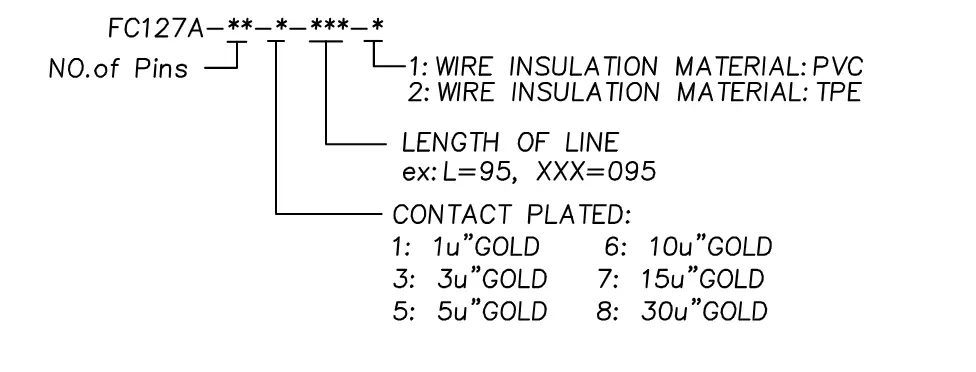

    Product Number Matrix:

    SMC cable线编码.png
