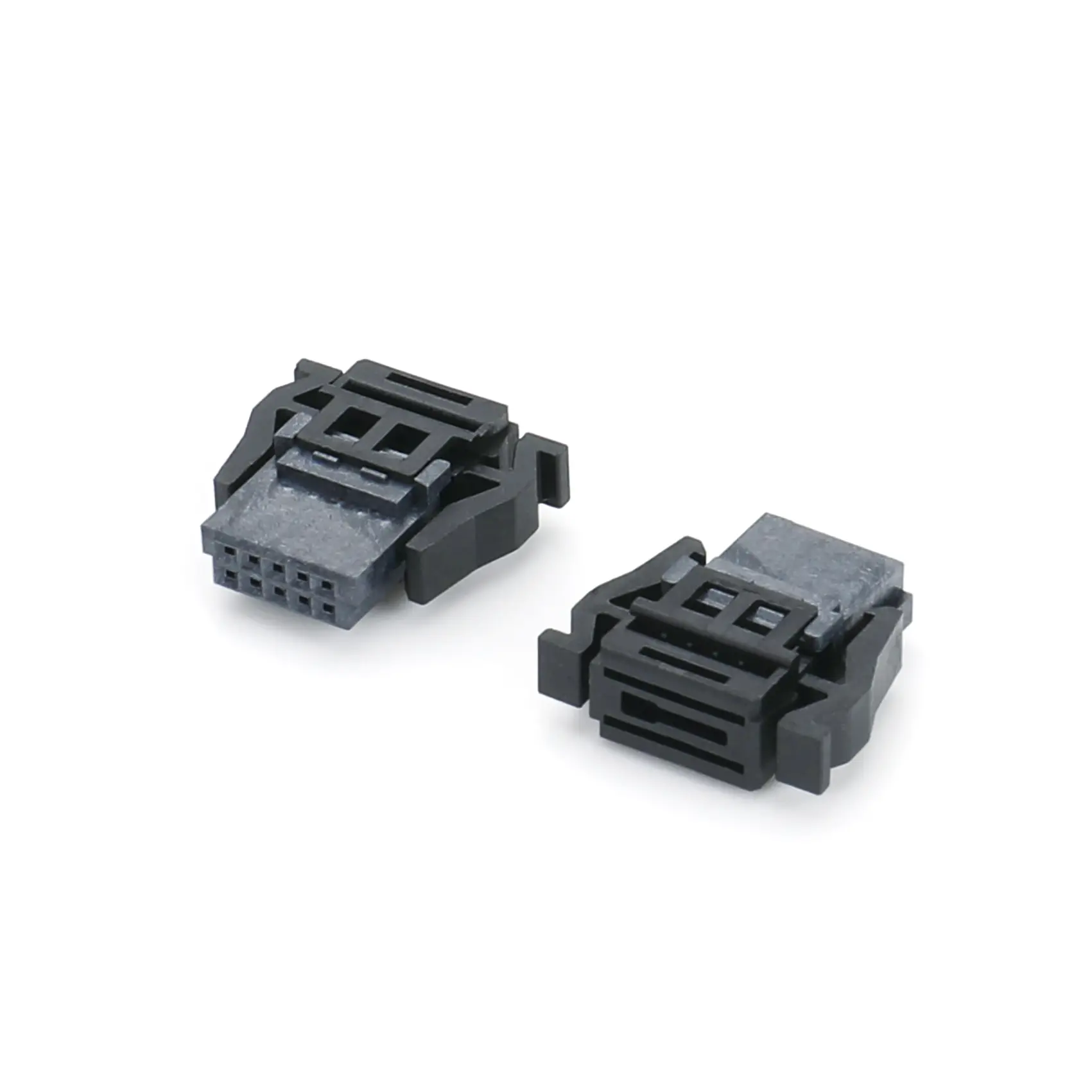

SMC 小.jpg

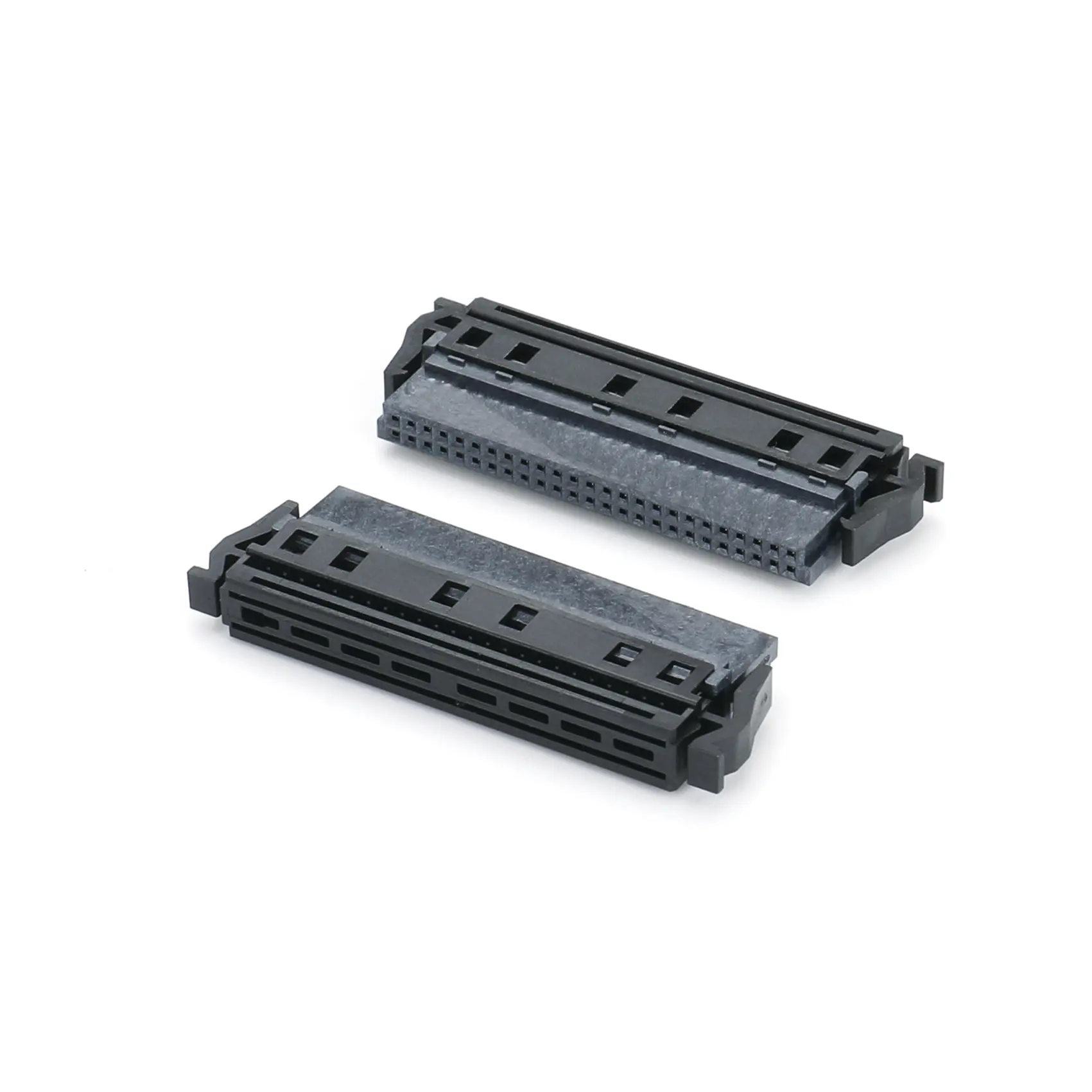

SMC 中.jpg
SMC 小.jpg
SMC 中.jpg

1.27mm Pitch IDC Connector

1.27mm pitch IDC connector, 1.27mm Pitch IDC female connector, 1.27mm pitch IDC socket, 1.27mm connector

    Contact us
    Product Detail

    1.27mm Pitch IDC Connector

    Current Rating: 1.7A
    Voltage Rating: AC 125V
    Contact Resistance: 25mΩ Max. Initial
    Operation Temperature: ﹣55℃~ +125℃
    Insulation Resistance: 1000MΩ
    Withstanding Voltage: 500V AC/60S
    Contact Material: Copper Alloy
    Housing Material: Thermoplastic. UL 94V-0

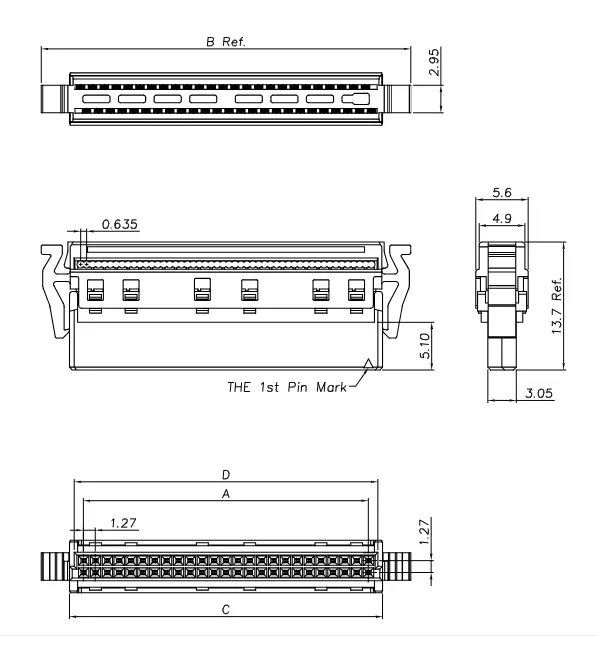

    Drawing:

    IDC 图纸截图.png

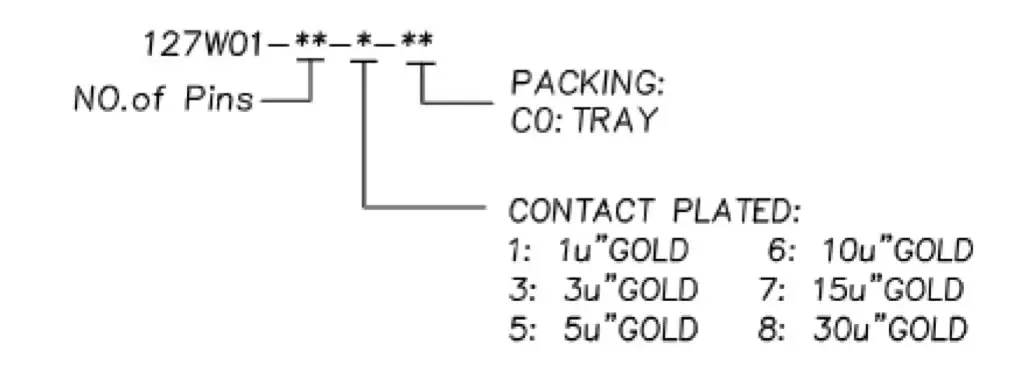

    Product Number Matrix:
