0.8mm Pitch Single Slot BTB Female Connector (BS080SA-0780)

This cutting-edge connector is designed to meet the demands of high-speed data transmission and offers a range of features that make it an ideal choice for a variety of applications.

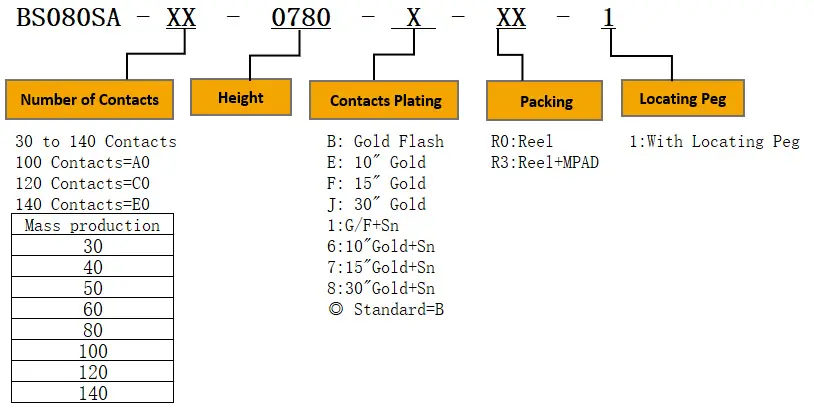

With a pitch of 0.8mm, this connector is engineered for high-density applications where space is at a premium. The soldering type is SMT, ensuring a reliable and robust connection. Available in configurations with 30, 40, 50, 60, 80, 100, 120, and 140 pins, this connector offers flexibility to suit a wide range of design requirements.

The connection type is vertical, allowing for efficient PCB layout and space-saving design. With a transmission speed of 12 Gbps, this connector is capable of handling high-speed data with ease, making it suitable for applications requiring rapid data transfer.

The stacking height of 5 - 20mm provides further flexibility in design, allowing for customization to specific project requirements. Despite its compact size, this connector offers a current rating of 0.5A and a voltage rating of AC 50V, making it suitable for a variety of power requirements.

In terms of performance, the connector boasts a contact resistance of 50mΩ max. initial, ensuring low resistance and reliable signal transmission. It operates within a wide temperature range of -40℃ to +105℃, making it suitable for use in diverse environmental conditions.

Furthermore, the insulation resistance of 100MΩ and a withstanding voltage of 500V AC/60S ensure the reliability and safety of the connector in various operating conditions.

Whether it’s for use in consumer electronics, telecommunications, industrial equipment, or other high-speed data applications, the 0.8mm Pitch Single Slot BTB Female Connector offers the performance, reliability, and versatility needed to meet the demands of today’s technology-driven world.
